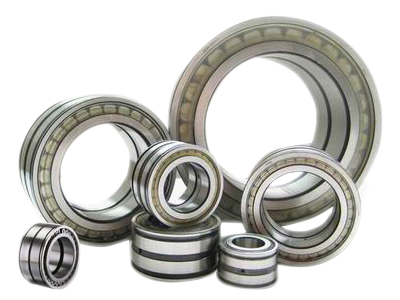

| SL04 系列 |
|
| SL04系列包括SL04 50系列和輕系列的SL04系列。 該系列產(chǎn)品雙側(cè)帶密封圈，外徑帶兩個卡簧槽，但是外徑卡簧不是軸承的標準配置。 |
|
|
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
|
SL04 130PP |
130 |
190 |
80 |
7.5 |
|
SL04 140PP |
140 |
200 |
80 |
8 |
|
SL04 150PP |
150 |
210 |
80 |
8.4 |
|
SL04 160PP |
160 |
220 |
80 |
8.8 |
|
SL04 170PP |
170 |
230 |
80 |
9.3 |
|
SL04 180PP |
180 |
240 |
80 |
9.8 |
|
SL04 190PP |
190 |
260 |
80 |
12.7 |
|
SL04 200PP |
200 |
270 |
80 |
13.2 |
|
SL04 220PP |
220 |
300 |
95 |
19.5 |
|
SL04 240PP |
240 |
320 |
95 |
21 |
|
SL04 260PP |
260 |
340 |
95 |
22.5 |
|
SL04 300PP |
300 |
380 |
95 |
25.5 |
|
|
|
|
|
|
|
SL04 5004PP |
20 |
42 |
30 |
0.2 |
|
SL04 5005PP |
25 |
47 |
30 |
0.24 |
|
SL04 5006PP |
30 |
55 |
34 |
0.37 |
|
SL04 5007PP |
35 |
62 |
36 |
0.48 |
|
SL04 5008PP |
40 |
68 |
38 |
0.56 |
|
SL04 5009PP |
45 |
75 |
40 |
0.7 |
|
SL04 5010PP |
50 |
80 |
40 |
0.76 |
|
SL04 5011PP |
55 |
90 |
46 |
1.18 |
|
SL04 5012PP |
60 |
95 |
46 |
1.26 |
|
SL04 5013PP |
65 |
100 |
46 |
1.33 |
|
SL04 5014PP |
70 |
110 |
54 |
1.87 |
|
SL04 5015PP |
75 |
115 |
54 |
1.96 |
|
SL04 5016PP |
80 |
125 |
60 |
2.71 |
|
SL04 5017PP |
85 |
130 |
60 |
2.83 |
|
SL04 5018PP |
90 |
140 |
67 |
3.71 |
|
SL04 5019PP |
95 |
145 |
67 |
3.88 |
|
SL04 5020PP |
100 |
150 |
67 |
3.95 |
|
SL04 5022PP |
110 |
170 |
80 |
6.57 |
|
SL04 5024PP |
120 |
180 |
80 |
7.04 |
|
SL04 5026PP |
130 |
200 |
95 |
10.5 |
|
SL04 5028PP |
140 |
210 |
95 |
11.1 |
|
SL04 5030PP |
150 |
225 |
100 |
13.3 |
|
SL04 5032PP |
160 |
240 |
109 |
16.6 |
|
SL04 5034PP |
170 |
260 |
122 |
22.6 |
|
SL04 5036PP |
180 |
280 |
136 |
30.1 |
|
SL04 5038PP |
190 |
290 |
136 |
31.5 |
|
SL04 5040PP |
200 |
310 |
150 |
40.8 |
|
SL04 5044PP |
220 |
340 |
160 |
52.5 |
|
SL04 5048PP |
240 |
360 |
160 |
56 |
|
SL04 5052PP |
260 |
400 |
190 |
84.5 |
|
SL04 5056PP |
280 |
420 |
190 |
90 |
|
SL04 5060PP |
300 |
460 |
218 |
126 |
|
|
|
