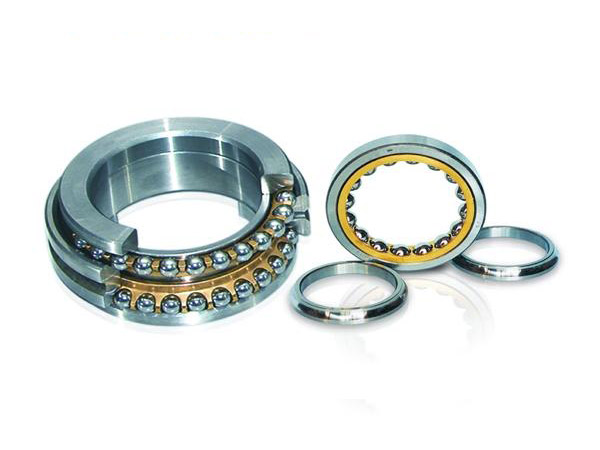

角接觸軸承-四點
| 角接觸軸承-四點 |
|
商品詳細介紹：
角接觸球軸承分為好多種結構，單列角接觸球軸承可承受徑向負荷和單一方向的軸向負荷。DB組合，DF組合成四點接觸、雙列角接觸球軸承可承受徑向和雙向軸向負荷。角接觸球軸承適用于高速及高精度旋轉。此類軸承主要應用于機床主軸、高頻馬達、油泵、空氣壓縮機、印刷機等。四點接觸球軸承多用于軋鋼機的油輥箱以承受軸向負荷。 |
|
| 軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
極限轉速 |
重量 |
| dxDxB |
動(Cr) |
靜(Cor) |
脂潤滑 |
油潤滑 |
| QJ(F)1020M |
100x150x24 |
79 |
128 |
3200 |
4300 |
1.63 |
| QJ220N2 |
100x180x34 |
152 |
215 |
2800 |
3800 |
3.91 |
| QJ320N2 |
100x215x47 |
249 |
372 |
2400 |
3400 |
8.78 |
| QJ(F)1022M |
110x170x28 |
113 |
186 |
2800 |
3800 |
2.68 |
| QJ222N2 |
110x200x38 |
194 |
284 |
2600 |
3400 |
5.71 |
| QJ322N2 |
110x240x50 |
280 |
442 |
2200 |
3000 |
12.0 |
| QJ(F)1024M |
120x180x28 |
158 |
225 |
2600 |
3500 |
2.78 |
| QJ224 |
120x215x40 |
209 |
318 |
2400 |
3200 |
6.29 |
| QJF324N2MA |
120x260x55 |
312 |
516 |
2000 |
2800 |
14.8 |
| QJ(F)1026 |
130x200x33 |
186 |
254 |
2400 |
3300 |
3.47 |
| QJ226N2 |
130x230x40 |
226 |
369 |
2200 |
3000 |
7.43 |
| QJ326 |
130x280x58 |
328 |
562 |
1900 |
2600 |
20.7 |
| QJ(F)1028 |
140x210x33 |
206 |
273 |
2200 |
3000 |
4.10 |
| QJ228N2 |
140x250x42 |
252 |
436 |
2000 |
2800 |
10.4 |
| QJ328 |
140x300x62 |
361 |
646 |
1700 |
2400 |
23.3 |
| QJ(F)1030 |
150x225x35 |
219 |
298 |
2000 |
2800 |
5.29 |
| QJ230N2 |
150x270x45 |
259 |
469 |
1800 |
2600 |
12.0 |
| QJ330 |
150x320x65 |
417 |
796 |
1600 |
2200 |
29.4 |
| QJ(F)1032M |
160x240x38 |
234 |
336 |
1900 |
2600 |
6.54 |
| QJ232N2 |
160x290x48 |
286 |
533 |
1700 |
2400 |
15.2 |
| QJ(F)1034 |
170x260x42 |
251 |
409 |
1800 |
2400 |
8.06 |
| QJ234N2 |
170x310x52 |
352 |
687 |
1600 |
2200 |
18.7 |
| QJ(F)1036 |
180x280x46 |
265 |
481 |
1700 |
2200 |
10.9 |
| 116736HA |
180x259.5x52 |
|
|
|
|
|
| QJ236 |
180x320x52 |
364 |
735 |
1500 |
2000 |
18.0 |
| QJ336 |
180x380x75 |
530 |
1125 |
1500 |
2000 |
46.2 |
| QJ(F)1038 |
190x290x46 |
250 |
480 |
1600 |
2200 |
11.5 |
| QJ238 |
190x340x55 |
380 |
790 |
1500 |
2000 |
22.6 |
| 176738 |
190x280x55 |
230 |
450 |
1600 |
2200 |
11.6 |
| QJ(F)1040 |
200x310x51 |
300 |
620 |
1500 |
2000 |
14.7 |
| 116740 |
200x289.5x50 |
250 |
500 |
1500 |
2000 |
13.8 |
| QJF240 |
200x360x58 |
400 |
850 |
1300 |
1800 |
27.3 |
| QJ340N2 |
200x420x80 |
570 |
1260 |
1200 |
1600 |
55.3 |
| QJ1044 |
220x340x56 |
305 |
650 |
1200 |
1700 |
17.8 |
| 116844 |
220x300x60 |
130 |
210 |
1450 |
1950 |
12.4 |
| QJ1048 |
240x360x56 |
330 |
750 |
1100 |
1500 |
20.9 |
| 116848 |
240x340x60 |
170 |
305 |
1300 |
1750 |
17.3 |
| 176748 |
240x329.5x60 |
150 |
270 |
1300 |
1750 |
15.3 |
| QJ1052 |
260x400x65 |
390 |
910 |
980 |
1200 |
31.5 |
| 176752 |
260x369.5x60 |
155 |
275 |
1200 |
1600 |
20.6 |
| 116752YS |
260x374.5x60 |
155 |
275 |
1200 |
1600 |
21.7 |
| 116753H |
266.6x355x35 |
175 |
340 |
1250 |
1600 |
9.59 |
| 116754 |
270x389.5x60 |
215 |
415 |
1100 |
1500 |
23.6 |
| QJ(F)1056 |
280x420x65 |
410 |
1010 |
960 |
1000 |
34.4 |
| 116956 |
280x389.5x65 |
200 |
390 |
1050 |
1400 |
23.8 |
| 116756K |
280x389.5x46 |
200 |
390 |
1050 |
1400 |
16.8 |
| QJ(F)1060 |
300x460x74 |
465 |
1224 |
900 |
1100 |
48.2 |
| 116760 |
300x439.5x65 |
260 |
540 |
970 |
1300 |
33.4 |
| 116860 |
300x420x65 |
235 |
485 |
1000 |
1350 |
27.9 |
| 116761H |
304.8x412x40 |
180 |
350 |
1000 |
1350 |
15.2 |
| QJ(F)1064 |
320x480x74 |
290 |
635 |
850 |
1230 |
47.0 |
| QJF2964X2 |
320x440x65 |
230 |
460 |
880 |
1250 |
29.4 |
| QJ(F)1076 |
380x560x82 |
375 |
900 |
670 |
890 |
68.8 |
| 116788 |
430x619.5x100 |
405 |
1050 |
600 |
800 |
98.9 |
|
|
|
